MB08TLJF5-42000-D
ActiveDelkin Devices, Inc.

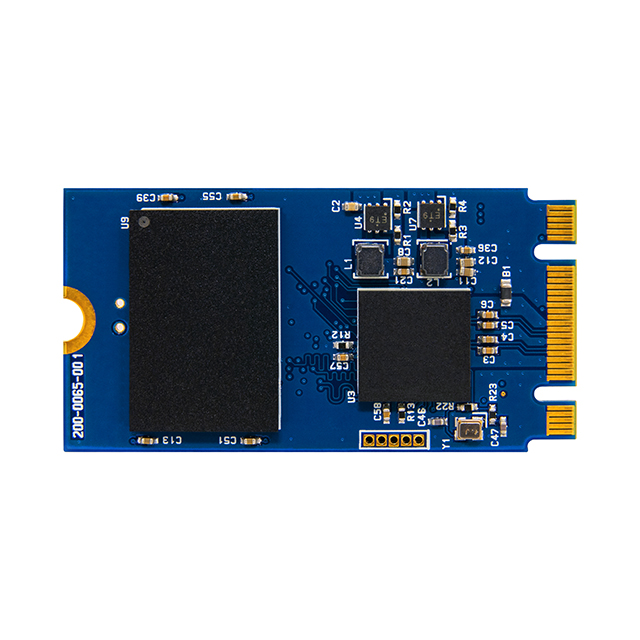

SSD 8GB M.2 MODULE SLC SATA 3.3V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB08TLJF5-42000-D |
|---|---|
| Current - Max [Max] | 315 mA |
| Form Factor | M.2 Module |
| Memory Size | 8 GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (SLC) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 42 mm |
| Size / Dimension [y] | 22 mm |
| Size / Dimension [z] | 3.2 mm |
| Speed - Read | 255 MB/s |
| Speed - Write | 50 MB/s |
| Type | SATA |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 122.45 | |
| 10 | $ 108.65 | |||
| 25 | $ 107.25 | |||
Description
General part information
MB08TLJF5-42000-D
Solid State Drive (SSD) FLASH - NAND (SLC) 8GB SATA M.2 Module 3.3V
