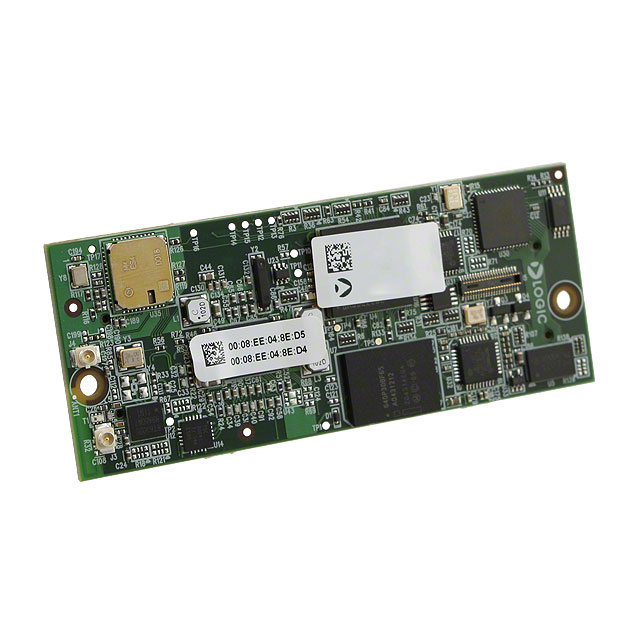

SOMOMAP3530-11-1672IFCR
ObsoleteBeacon EmbeddedWorks
IC MOD CORTEX-A8 600MHZ 128MB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SOMOMAP3530-11-1672IFCR
ObsoleteBeacon EmbeddedWorks
IC MOD CORTEX-A8 600MHZ 128MB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SOMOMAP3530-11-1672IFCR |
|---|---|
| Co-Processor | TMS320C64x (DSP) |
| Connector Type | Board-to-Board (BTB) Socket - 240 |
| Core Processor | ARM® Cortex®-A8, OMAP3530 |
| Flash Size [custom] | 8 MB |
| Flash Size [custom] | 256 MB |
| Module/Board Type | MPU, DSP Core |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Size | 128 MB |
| Size / Dimension [x] | 31.2 mm |
| Size / Dimension [x] | 1.23 " |
| Size / Dimension [y] | 76.5 mm |
| Size / Dimension [y] | 3.01 in |
| Speed | 600 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SOMOMAP3530-11-1672IFCR
OMAP35x Embedded Module ARM® Cortex®-A8, OMAP3530 TMS320C64x (DSP) 600MHz 128MB 256MB (NAND), 8MB (NOR)
Documents
Technical documentation and resources
