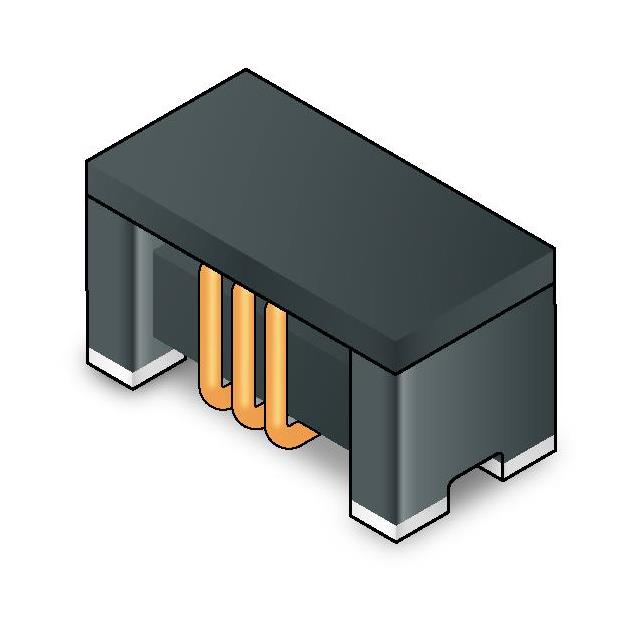

AEOI3225-201NZ
ActiveMax Echo
CMC 200UH 70MA 2LN SMD AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AEOI3225-201NZ
ActiveMax Echo
CMC 200UH 70MA 2LN SMD AEC-Q200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AEOI3225-201NZ |
|---|---|
| Current Rating (Max) [Max] | 70 mA |
| DC Resistance (DCR) (Max) | 5.5 Ohm |
| Grade | Automotive |
| Height (Max) [Max] [z] | 0.098 in |
| Height (Max) [Max] [z] | 2.5 mm |
| Inductance @ Frequency | 200 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Voltage Rating - DC | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.15 | |
| 10 | $ 0.97 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.15 | ||
| 10 | $ 0.97 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.60 | |||
| Tape & Reel (TR) | 1000 | $ 0.53 | ||
| 2000 | $ 0.49 | |||
| 3000 | $ 0.47 | |||
| 5000 | $ 0.44 | |||
| 7000 | $ 0.44 | |||
Description
General part information
AEOI3225-201NZ
200 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 70mA DCR 5.5Ohm
