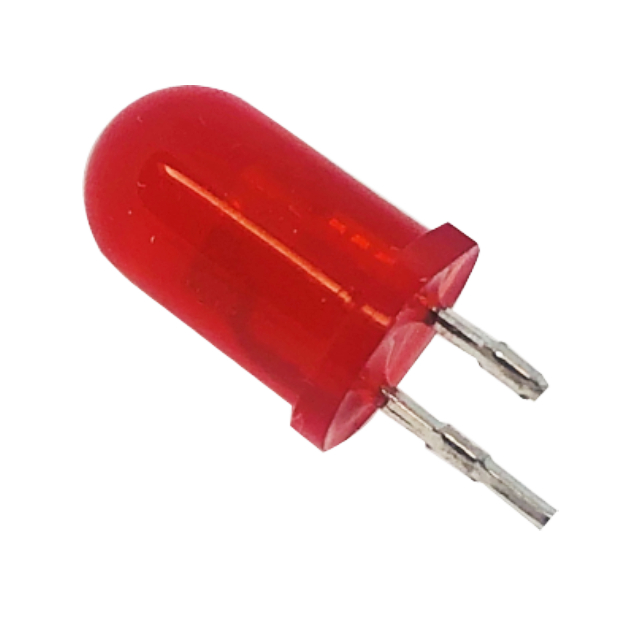

L513SRD-A
ActiveAmerican Opto Plus LED
LED RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L513SRD-A
ActiveAmerican Opto Plus LED
LED RED DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L513SRD-A |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 9.6 mm |
| Lens Color | Red |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 80 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 5 mm |
| Supplier Device Package | T-1 3/4 (5mm) |
| Viewing Angle | 45 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.09 | |||
Description
General part information
L513SRD-A
Red LED Indication - Discrete 1.8V Radial
