MBR16200DC_R2_00001
ActivePanjit International Inc.
D PAK SURFACE SCHOTTKY BARRIER R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MBR16200DC_R2_00001
ActivePanjit International Inc.
D PAK SURFACE SCHOTTKY BARRIER R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MBR16200DC_R2_00001 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 16 A |
| Current - Reverse Leakage @ Vr | 50 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-263 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.21 | |
| 10 | $ 1.42 | |||
| 100 | $ 0.96 | |||
| Digi-Reel® | 1 | $ 2.21 | ||
| 10 | $ 1.42 | |||
| 100 | $ 0.96 | |||
| Tape & Reel (TR) | 800 | $ 0.60 | ||
Description
General part information
MBR16200DC_R2_00001

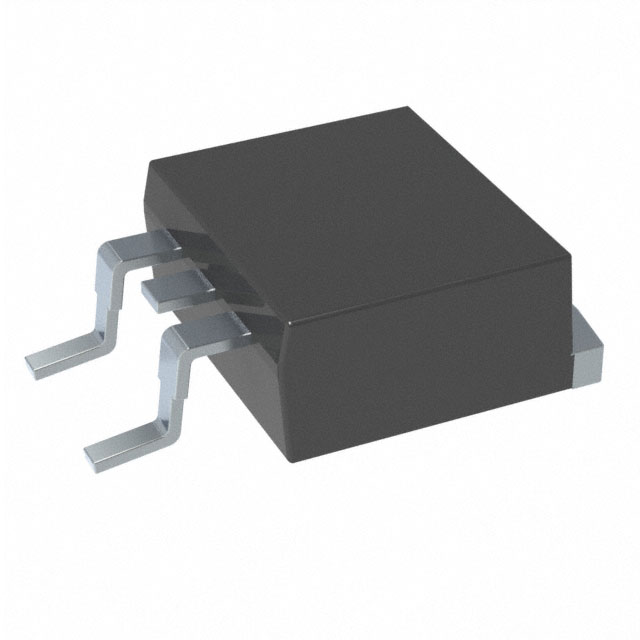

Diode Array 1 Pair Common Cathode 200 V 16A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
