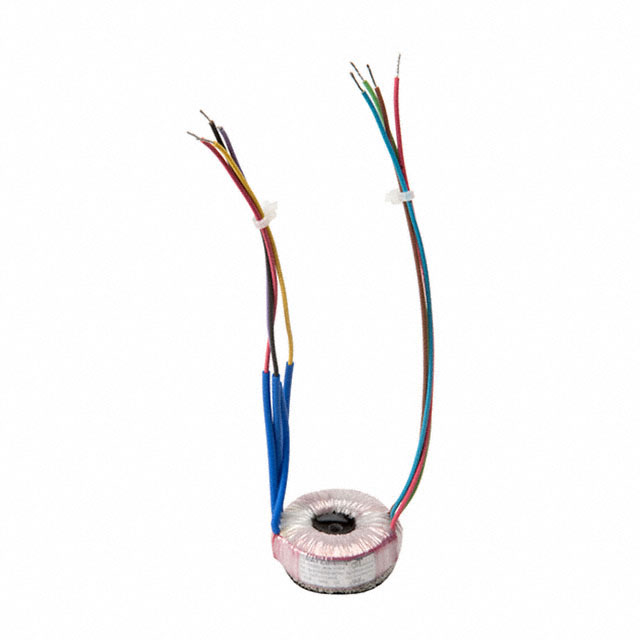

XF-10218
ActiveAmgis, LLC
PWR XFMR TOROIDAL 14VA CHAS MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XF-10218
ActiveAmgis, LLC
PWR XFMR TOROIDAL 14VA CHAS MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XF-10218 |
|---|---|
| Center Tap | False |
| Current - Output (Max) [Max] | 500 mA, 250 mA |
| Height - Seated (Max) [Max] | 21.5 mm |
| Mounting Type | Chassis Mount |
| Power - Max [Max] | 14 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension [diameter] | 47 mm |
| Termination Style | Wire Leads |
| Type | Toroidal |
| Voltage - Isolation | 4000 Vrms |
| Voltage - Primary | 115 V, 230 V |
| Voltage - Secondary (Full Load) | 7 V, 14 V |
| Weight | 0.32 lb |
| Weight | 145.15 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 17.54 | |
Description
General part information
XF-10218
PWR XFMR TOROIDAL 14VA CHAS MT
