MP825-2.00-1%
ActiveCaddock Electronics Inc.
RES 2 OHM 1% 25W TO126
Deep-Dive with AI
Search across all available documentation for this part.
MP825-2.00-1%
ActiveCaddock Electronics Inc.
RES 2 OHM 1% 25W TO126
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP825-2.00-1% |
|---|---|
| Composition | Thick Film |
| Features | Non-Inductive, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.55 " |
| Height - Seated (Max) [Max] [z] | 13.97 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-126-2 |
| Power (Watts) | 25 W |
| Resistance | 2 Ohms |
| Size / Dimension [x] | 0.32 in |
| Size / Dimension [x] | 8.12 mm |
| Size / Dimension [y] | 2.79 mm |
| Size / Dimension [y] | 0.11 in |
| Supplier Device Package | TO-126 |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 50 | $ 7.00 | |
Description
General part information
MP825-2.00-1%

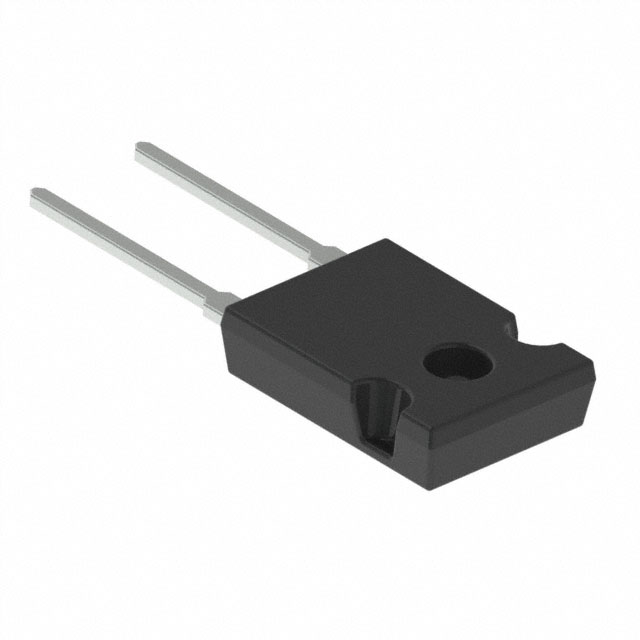

2 Ohms ±1% 25W Through Hole Resistor TO-126-2 Moisture Resistant, Non-Inductive Thick Film
