MMF405288
ActiveMicro-Measurements (Division of Vishay Precision Group)

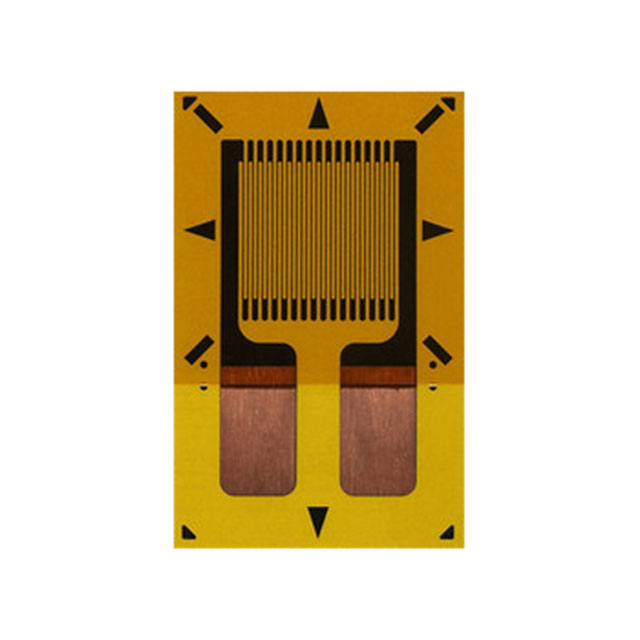

CEA-13-125UWA-120 - STRAIN GAGES
Deep-Dive with AI
Search across all available documentation for this part.
MMF405288
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-13-125UWA-120 - STRAIN GAGES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF405288 |
|---|---|
| Length - Active [x] | 0.125 in |
| Length - Active [x] | 3.18 mm |
| Length - Overall | 10.7 mm |
| Length - Overall | 0.42 in |
| Length - Overall Pattern [x] | 8.26 mm |
| Length - Overall Pattern [x] | 0.325 in |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -103 °F |
| Operating Temperature [Min] | -75 °C |
| Pattern Type | Linear |
| Resistance | 120 Ohms |
| Resistance Tolerance | 0.3 % |
| Width - Active | 4.57 mm |
| Width - Active [y] | 0.18 in |
| Width - Overall [y] | 0.27 in |
| Width - Overall [y] | 6.9 mm |
| Width - Overall Pattern [x] | 0.18 in |
| Width - Overall Pattern [x] | 4.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 84.86 | |
Description
General part information
MMF405288
Linear Strain Gauge ±5% 0.125" (3.18mm) 0.180" (4.57mm)
Documents
Technical documentation and resources
No documents available
