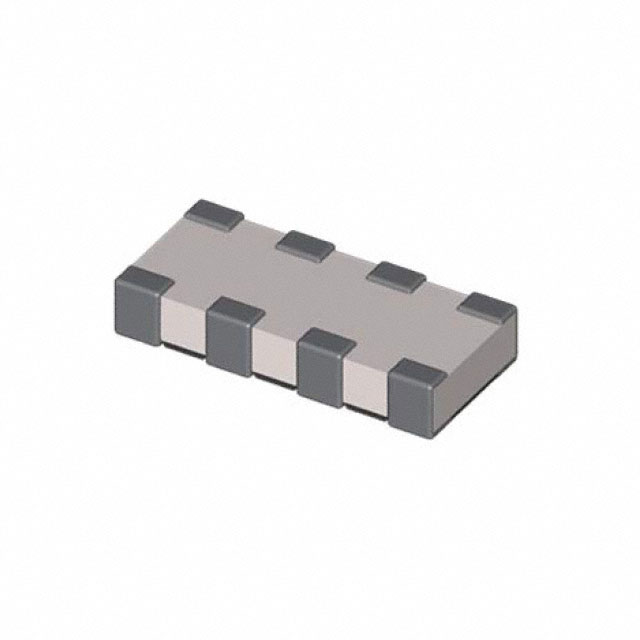

RM064PJ824CS
ActiveSamsung Electro-Mechanics
RESISTOR ARRAY INVERTED 0201X4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RM064PJ824CS
ActiveSamsung Electro-Mechanics
RESISTOR ARRAY INVERTED 0201X4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RM064PJ824CS |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) [Max] | 0.33 mm |
| Height - Seated (Max) [Max] [z] | 0.013 " |
| Mounting Type | Surface Mount |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0502 (1406 Metric), Long Side Terminals |
| Power Per Element | 31.25 mW |
| Resistance (Ohms) | 820 kOhms |
| Size / Dimension [x] | 0.055 in |
| Size / Dimension [x] | 1.4 mm |
| Size / Dimension [y] | 0.6 mm |
| Size / Dimension [y] | 0.024 " |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000000 | $ 0.08 | |
Description
General part information
RM064PJ824CS
820k Ohm ±5% 31.25mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0502 (1406 Metric), Long Side Terminals
