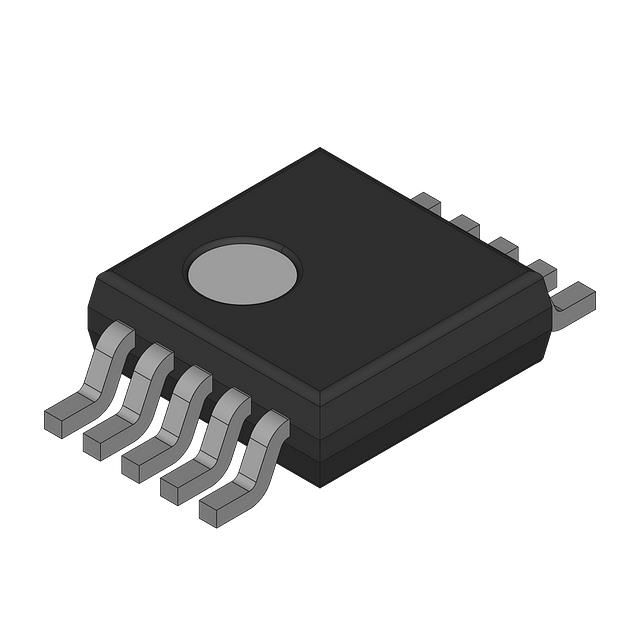

EL5256IY
ObsoleteElantec
IC OPAMP VFB 2 CIRCUIT 10MSOP
Deep-Dive with AI
Search across all available documentation for this part.
EL5256IY
ObsoleteElantec
IC OPAMP VFB 2 CIRCUIT 10MSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EL5256IY |
|---|---|
| -3db Bandwidth | 600 MHz |
| Amplifier Type | Voltage Feedback |
| Current - Input Bias | 400 nA |
| Current - Output / Channel | 140 mA |
| Current - Supply | 6 mA |
| Gain Bandwidth Product | 210 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-MSOP, 10-TFSOP |
| Package / Case [x] | 3 mm |
| Package / Case [x] | 0.118 in |
| Slew Rate | 700 V/µs |
| Supplier Device Package | 10-MSOP |
| Voltage - Input Offset | 500 çV |
| Voltage - Supply Span (Max) [Max] | 12 V |
| Voltage - Supply Span (Min) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 42 | $ 7.18 | |
Description
General part information
EL5256IY
Voltage Feedback Amplifier 2 Circuit 10-MSOP
Documents
Technical documentation and resources
No documents available
