115V-AD00
ActiveATTEND Technology
CONN NANO SIM SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
115V-AD00
ActiveATTEND Technology
CONN NANO SIM SOCKET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 115V-AD00 |
|---|---|
| Card Type | NANO SIM |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Height Above Board | 0.079 in |
| Height Above Board | 2 mm |
| Insertion, Removal Method | Hinged Lid |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.51 | |
| 10 | $ 1.91 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.59 | |||
| 100 | $ 1.47 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.24 | |||
| Digi-Reel® | 1 | $ 2.51 | ||
| 10 | $ 1.91 | |||
| 25 | $ 1.72 | |||
| 50 | $ 1.59 | |||
| 100 | $ 1.47 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.24 | |||
| Tape & Reel (TR) | 1000 | $ 1.16 | ||
| 2000 | $ 1.08 | |||
| 3000 | $ 1.04 | |||
| 5000 | $ 0.99 | |||
| 7000 | $ 0.96 | |||
| 10000 | $ 0.95 | |||
Description
General part information
115V-AD00

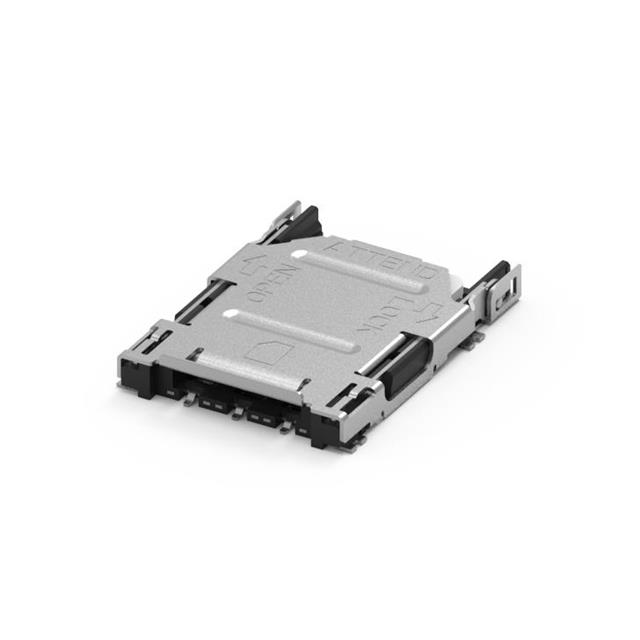

6 Position Card Connector NANO SIM Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
