Technical Specifications
Parameters and characteristics for this part
| Specification | NRF24L01 |
|---|---|
| Current - Transmitting [Max] | 11.3 mA |
| Current - Transmitting [Min] | 7 mA |
| Data Rate (Max) | 2 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

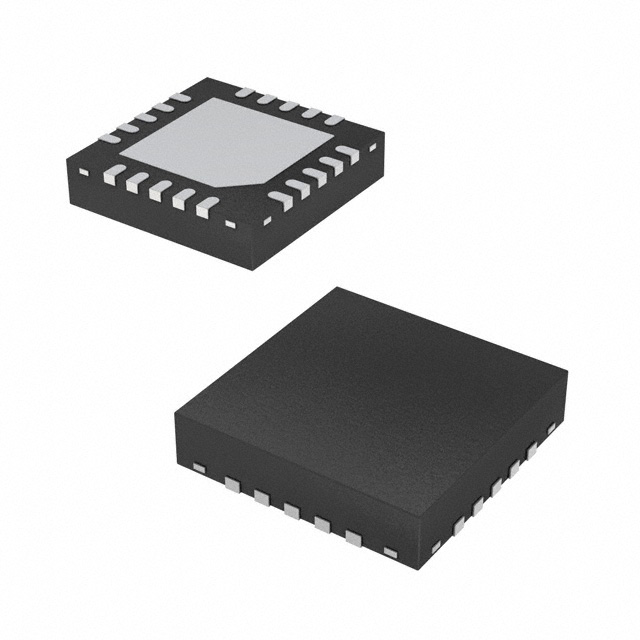

| Package / Case | 20-VFQFN Exposed Pad |
| Power - Output | 0 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -85 dBm |
| Serial Interfaces | SPI |
| Supplier Device Package | 20-QFN (4x4) |
| Type | TxRx Only |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2450 | $ 1.95 | |
Description
General part information
NRF24L01
IC RF TxRx Only General ISM > 1GHz 2.4GHz 20-VFQFN Exposed Pad
