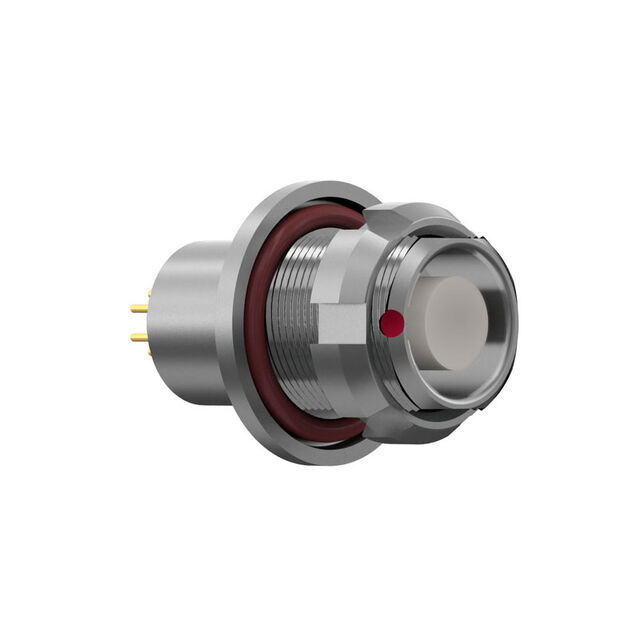

G80L0C-P04LFD0-0000
ActiveODU
ODU MINI-SNAP SERIES L RECEPTACL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G80L0C-P04LFD0-0000
ActiveODU
ODU MINI-SNAP SERIES L RECEPTACL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G80L0C-P04LFD0-0000 |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 6 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 0 |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Copper Alloy |
| Shell Size - Insert | 0 |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 67.34 | |
Description
General part information
G80L0C-P04LFD0-0000
4 Position Circular Connector Receptacle, Female Sockets Solder
