67144080
UnknownSchott Corporation
FIXED IND 54UH 1.15A 45 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.

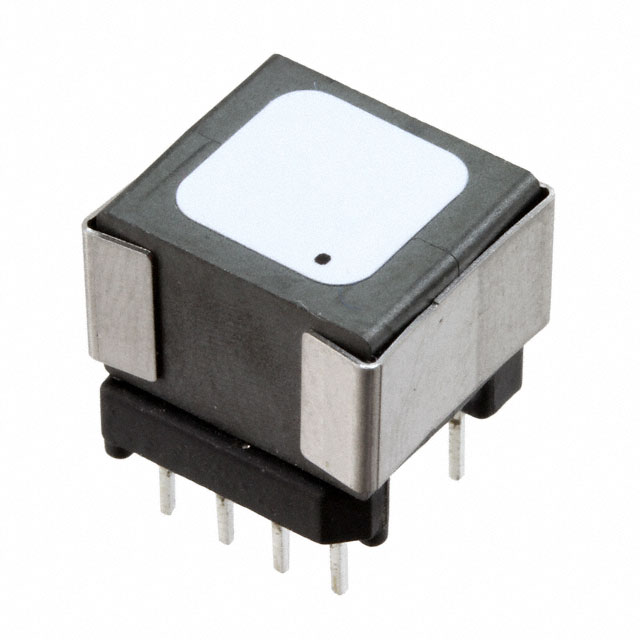

67144080
UnknownSchott Corporation
FIXED IND 54UH 1.15A 45 MOHM TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 67144080 |
|---|---|
| Current - Saturation (Isat) | 1.15 A |
| Current Rating (Amps) | 1.15 A |
| DC Resistance (DCR) | 45 mOhm |
| Height - Seated (Max) [Max] [z] | 11.43 mm |
| Height - Seated (Max) [Max] [z] | 0.45 in |
| Inductance | 54 µH |
| Inductance Frequency - Test | 10 kHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Shielding | Shielded |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 11.94 mm |
| Size / Dimension [y] | 0.47 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.88 | |
| 10 | $ 3.79 | |||
| 25 | $ 3.72 | |||
Description
General part information
67144080
54 µH Shielded Inductor 1.15 A 45mOhm Max 8-DIP Module
Documents
Technical documentation and resources
No documents available
