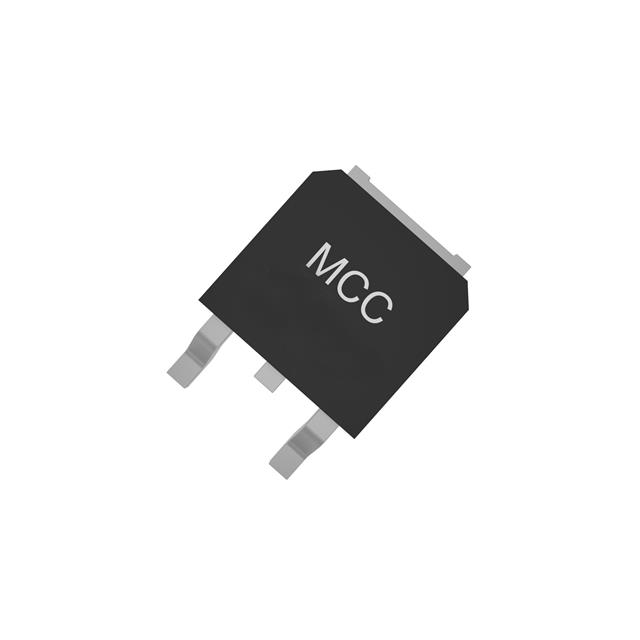

MC78M15CDT-TP
ActiveMicro Commercial Components
STANDARD REGULATOR POS 15V 0.5A 3-PIN(2+TAB) DPAK T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC78M15CDT-TP
ActiveMicro Commercial Components
STANDARD REGULATOR POS 15V 0.5A 3-PIN(2+TAB) DPAK T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MC78M15CDT-TP |
|---|---|
| Current - Output | 500 mA |
| Current - Quiescent (Iq) | 6 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) [Max] [custom] | 35 V |
| Voltage - Output (Min/Fixed) | 14.25 V |
| Voltage Dropout (Max) [Max] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2500 | $ 0.17 | |
Description
General part information
MC78M15CDT-TP
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA DPAK
