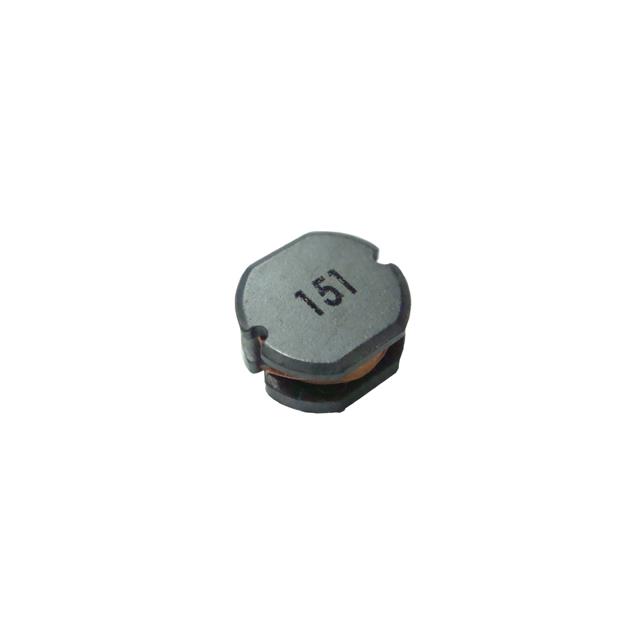

BPSD00050432330M00
ActivePulse Electronics
INDUCTOR POWER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPSD00050432330M00 |
|---|---|
| Current - Saturation (Isat) | 640 mA |
| DC Resistance (DCR) [Max] | 540 mOhm |
| Height - Seated (Max) [Max] [z] | 3.5 mm |
| Height - Seated (Max) [Max] [z] | 0.138 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [y] | 4 mm |
| Size / Dimension [y] | 0.157 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10000 | $ 0.15 | |
Description
General part information
BPSD00050432330M00
33 µH Unshielded Inductor 540mOhm Max Nonstandard
