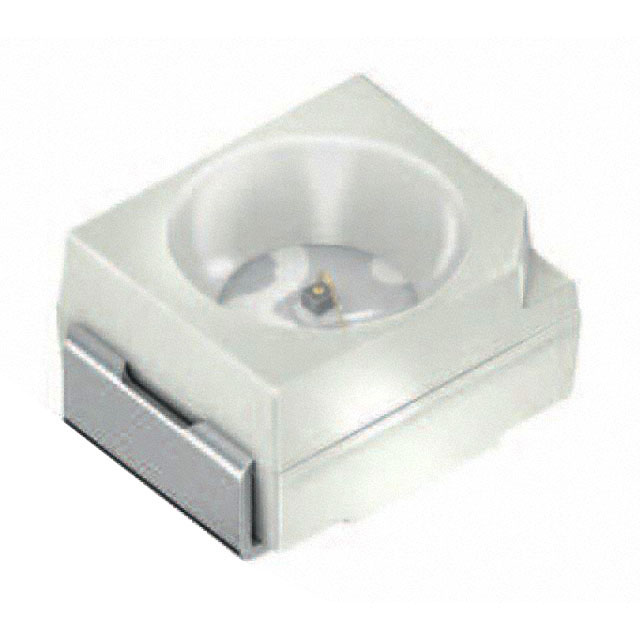

LT T673-P2Q2-4-0-10-R18-Z-TW
Obsoleteams-OSRAM USA INC.
LED GREEN CLEAR 2PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LT T673-P2Q2-4-0-10-R18-Z-TW
Obsoleteams-OSRAM USA INC.
LED GREEN CLEAR 2PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LT T673-P2Q2-4-0-10-R18-Z-TW |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] | 2.8 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 84 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Dominant | 529 nm |
| Wavelength - Peak | 527 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LT T673-P2Q2-4-0-10-R18-Z-TW
Green 529nm LED Indication - Discrete 3V 2-PLCC
