833-87-004-10-001101
ActivePRECI-DIP SA

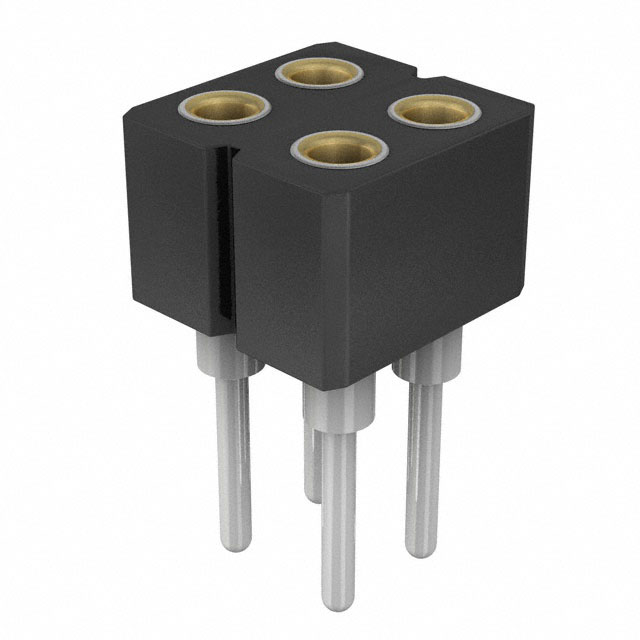

CONN SOCKET 4POS 0.079 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
833-87-004-10-001101
ActivePRECI-DIP SA
CONN SOCKET 4POS 0.079 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-87-004-10-001101 |
|---|---|
| Connector Type | Socket |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.165 in |
| Insulation Height [z] | 4.2 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.32 | |
Description
General part information
833-87-004-10-001101
4 Position Socket Connector 0.079" (2.00mm) Through Hole Gold
