Technical Specifications
Parameters and characteristics for this part
| Specification | RB-0505S/H |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 78 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

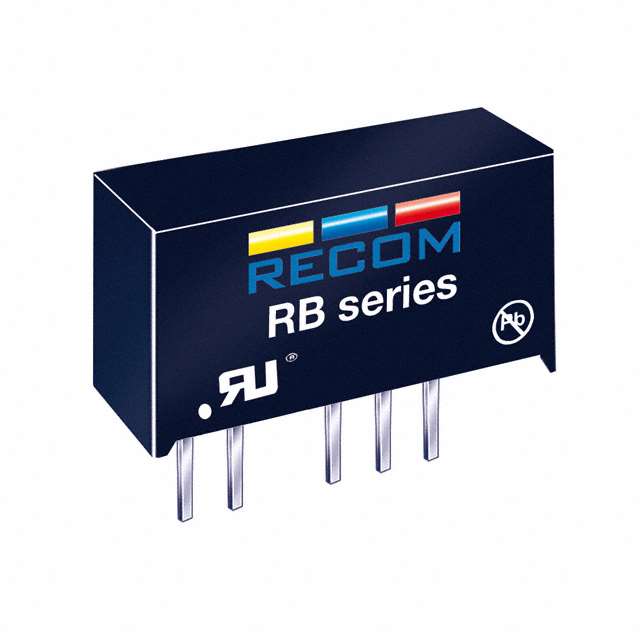

RB-0505S/H
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
