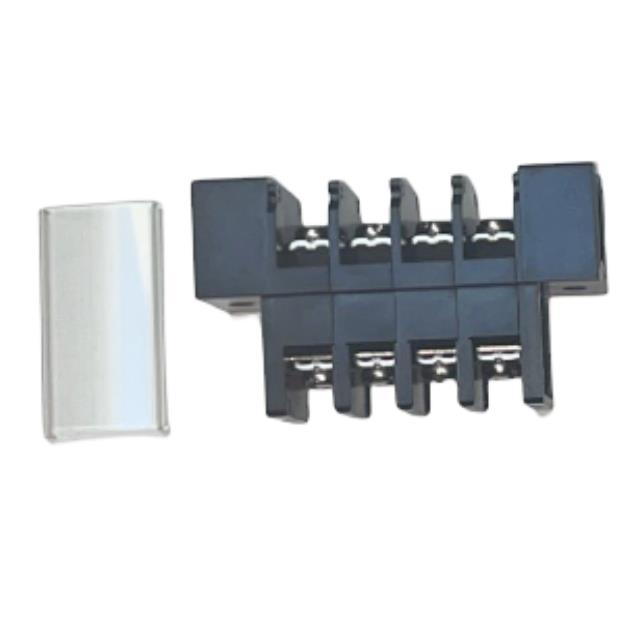

OTB-351-04P-C
ActiveBlockMaster Electronics
THRU-PANEL TERMINAL BLOCK, BARRI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OTB-351-04P-C |
|---|---|
| Color | Black |
| Current Rating (Amps) | 20 A |
| Mounting Type | Through Hole |
| Number of Circuits | 4 |
| Number of Wire Entries | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.335 in |
| Pitch [x] | 8.5 mm |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Nickel |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 13.43 | |
Description
General part information
OTB-351-04P-C
4 Circuit 0.335" (8.50mm) Barrier Block Connector Screws
