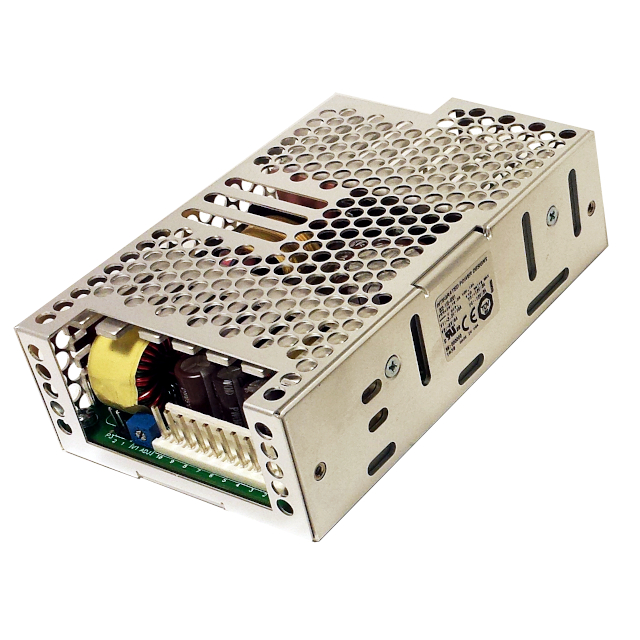

1010658CHCO
ActiveIntegrated Power Designs
DC4-110-4005CHCO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1010658CHCO
ActiveIntegrated Power Designs
DC4-110-4005CHCO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010658CHCO |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output (Max) | 6 A, 2 A, 10 A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 110 W |
| Size / Dimension [x] | 133.4 mm |
| Size / Dimension [x] | 5.25 " |
| Size / Dimension [y] | 3.12 " |
| Size / Dimension [y] | 79.2 mm |
| Size / Dimension [z] | 1.48 " |
| Size / Dimension [z] | 37.6 mm |
| Standard Number | 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
| Voltage - Output 3 | 15 V |
| Voltage - Output 4 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 187.91 | |
| 25 | $ 175.60 | |||
| 100 | $ 170.70 | |||
Description
General part information
1010658CHCO
Enclosed DC DC Converter 4 Output 5V -5V 15V -15V 10A, 6A, 2A, 2A 72V Input
