SMAJ300CA
ActiveSMC Diode Solutions
300V, 400W,SMA, TRANSIENT VOLTAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMAJ300CA
ActiveSMC Diode Solutions
300V, 400W,SMA, TRANSIENT VOLTAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMAJ300CA |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 800 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

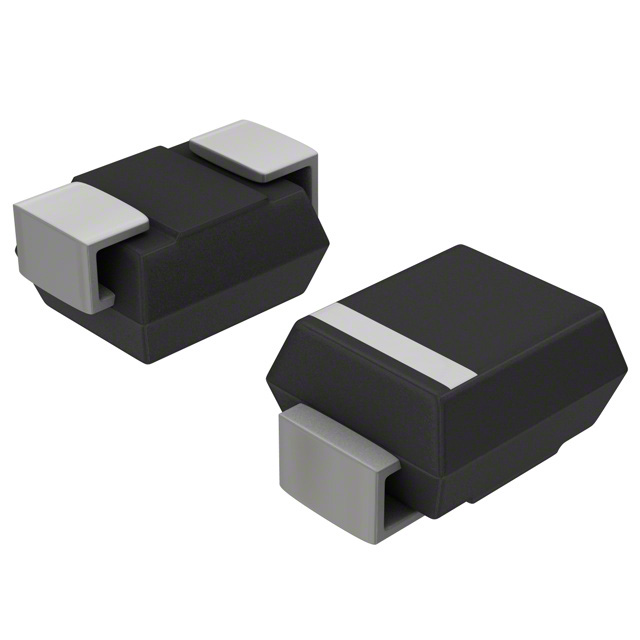

| Package / Case | DO-214AC, SMA |
| Power - Peak Pulse | 400 W |
| Power Line Protection | False |
| Supplier Device Package | DO-214AC (SMA) |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 335 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 486 V |
| Voltage - Reverse Standoff (Typ) | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 1 | $ 0.37 | |||
| 10 | $ 0.27 | |||
| 10 | $ 0.35 | |||
| 100 | $ 0.13 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.21 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.19 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 1 | $ 0.41 | |||
| 10 | $ 0.27 | |||
| 10 | $ 0.35 | |||
| 100 | $ 0.13 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.12 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.19 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| Tape & Reel (TR) | 5000 | $ 0.08 | ||
| 5000 | $ 0.19 | |||
| 10000 | $ 0.07 | |||
| 25000 | $ 0.07 | |||
| 50000 | $ 0.06 | |||
| 125000 | $ 0.06 | |||
Description
General part information
SMAJ300CA
486V Clamp 800mA Ipp Tvs Diode Surface Mount DO-214AC (SMA)
