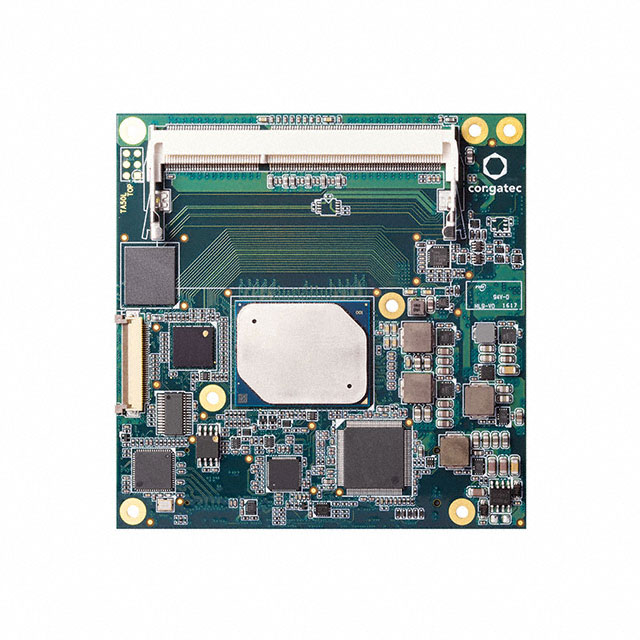

048530
Activecongatec
SBC 2.4GHZ 2 CORE 8GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
048530
Activecongatec
SBC 2.4GHZ 2 CORE 8GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 048530 |
|---|---|
| Core Processor | Celeron N3350 |
| Ethernet | GbE |
| Expansion Site/Bus | PCIe, SATA |
| Form Factor | COM Express Type 6 Compact Module |
| Number of Cores | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 6 W |
| RAM Capacity/Installed | 8 GB |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [x] | 94.99 mm |
| Size / Dimension [y] | 3.74 " |
| Size / Dimension [y] | 94.99 mm |
| Storage Interface | eMMC |
| USB | USB 3.0 (4), USB 2.0 (8) |
| Video Outputs | DisplayPort, HDMI, eDP |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
048530
Single Board Computer 2.4GHz 2 Core 8GB RAM Celeron N3350
Documents
Technical documentation and resources
