5110.1043.3
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
5110.1043.3
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5110.1043.3 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CCC, ENEC, cULus |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Filter | 10 A |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 29 mm |
| Panel Cutout Dimensions [y] | 21 mm |
| Panel Thickness [Max] | 0.118 in |
| Panel Thickness [Max] | 3 mm |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.23 | |
| 10 | $ 19.75 | |||
| 30 | $ 18.27 | |||
| 50 | $ 17.63 | |||
| 100 | $ 16.78 | |||
| 250 | $ 15.73 | |||
| 500 | $ 14.98 | |||
Description
General part information
5110.1043.3

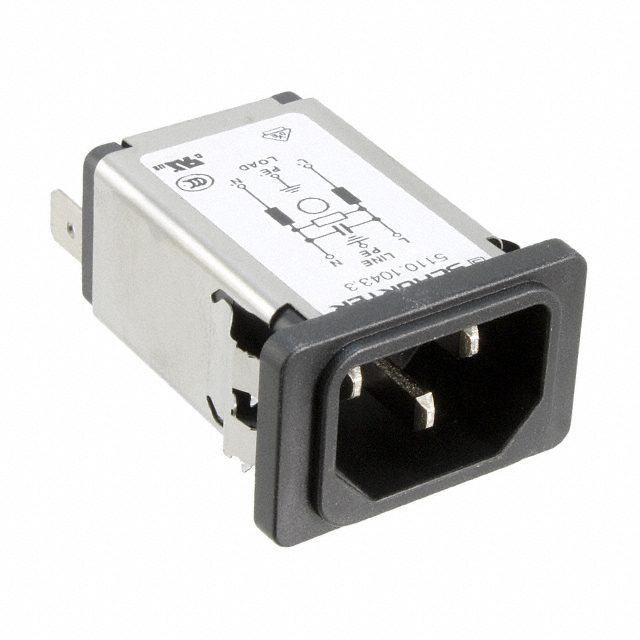

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
Documents
Technical documentation and resources
