KPT5-15/16
ActiveBertech

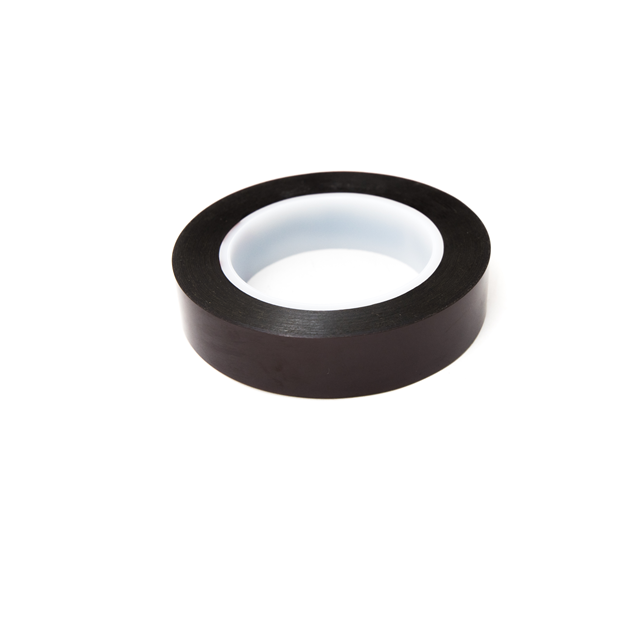

TAPE MASKING AMBER 15/16"X36YDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KPT5-15/16
ActiveBertech
TAPE MASKING AMBER 15/16"X36YDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KPT5-15/16 |
|---|---|
| Adhesive | Silicone |
| Backing, Carrier | Polyimide |
| Color | Amber |
| Length | 36 yd |
| Length | 32.9 m |
| Length | 108 ft |
| Tape Type | Masking |
| Temperature Range [Max] | 260 °C |
| Temperature Range [Max] | 500 °F |
| Temperature Range [Min] | -73 °C |
| Temperature Range [Min] | -99 °F |
| Thickness | 0.0065 in |
| Thickness | 6.5 mils |
| Thickness | 0.165 mm |
| Thickness - Adhesive | 1.5 mils |
| Thickness - Adhesive | 0.0015 in |
| Thickness - Adhesive | 0.038 mm |
| Thickness - Backing, Carrier [custom] | 0.005 " |
| Thickness - Backing, Carrier [custom] | 5 mils |
| Thickness - Backing, Carrier [custom] | 0.127 mm |
| Usage | Masking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 111.78 | |
Description
General part information
KPT5-15/16
Masking Tape Silicone Adhesive Amber 0.94" (24.00mm) 15/16" X 108' (32.9m) 36 yds
Documents
Technical documentation and resources
