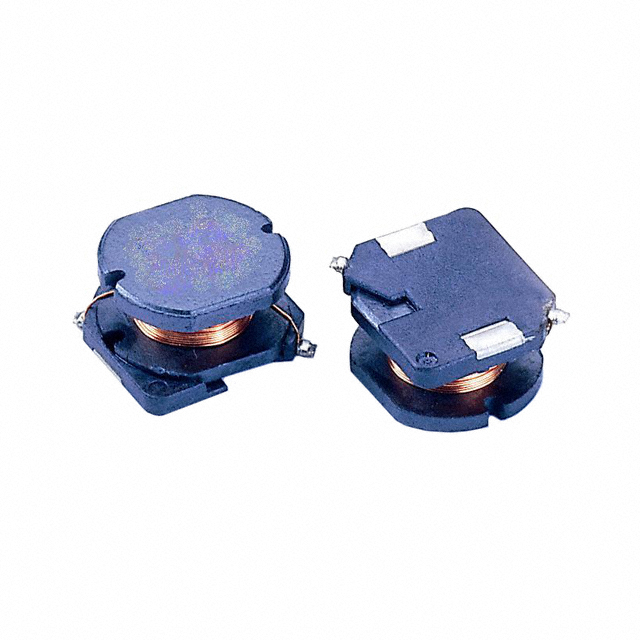

SC105B-330
ObsoleteSignal Transformer
FIXED IND 33UH 1.9A 160 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
SC105B-330
ObsoleteSignal Transformer
FIXED IND 33UH 1.9A 160 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC105B-330 |
|---|---|
| Current Rating (Amps) | 1.9 A |
| DC Resistance (DCR) [Max] | 160 mOhm |
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Inductance | 33 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.429 " |
| Size / Dimension [x] | 10.9 mm |
| Size / Dimension [y] | 0.386 in |
| Size / Dimension [y] | 9.8 mm |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SC105B-330
33 µH Unshielded Wirewound Inductor 1.9 A 160mOhm Max Nonstandard
Documents
Technical documentation and resources
No documents available
