BFNDDFT110A5
ActiveAmphenol TPC Wire & Cable

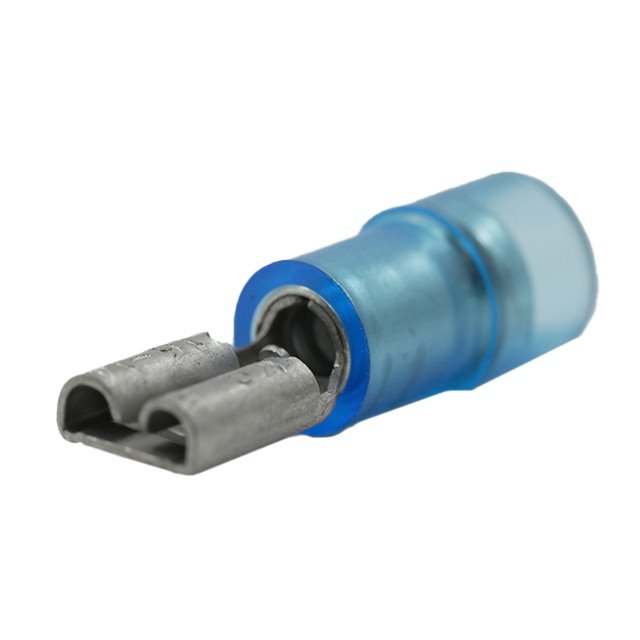

CONN QC RCPT 16-14AWG F BLU .110
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BFNDDFT110A5
ActiveAmphenol TPC Wire & Cable
CONN QC RCPT 16-14AWG F BLU .110
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BFNDDFT110A5 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Insulated |
| Length - Overall [x] | 0.772 in |
| Length - Overall [x] | 19.6 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 6.5 mm |
| Tab Length | 0.256 in |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Standard |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.10 | |
| 2000 | $ 0.09 | |||
| 4000 | $ 0.09 | |||
Description
General part information
BFNDDFT110A5
0.110" (2.79mm) Quick Connect Female 14-16 AWG Crimp Connector Insulated
