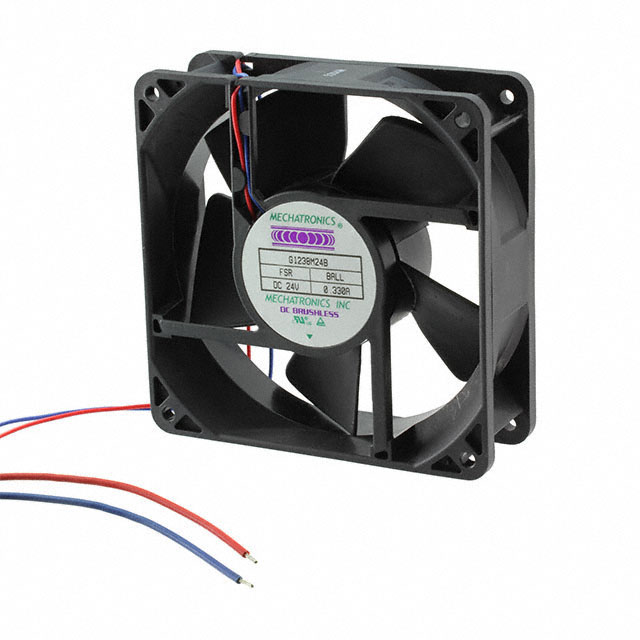

G1238M24B-FSR-CC - FAN AXIAL 120X38MM

G1238M24B-FSR-CC

Active
Mechatronics Bearing Group

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Fan, Blower Lead Wire SpecDC Lead Wire Specs+2
G1238M24B-FSR-CC - FAN AXIAL 120X38MM

G1238M24B-FSR-CC

Active
Mechatronics Bearing Group

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDC Fan, Blower Lead Wire SpecDC Lead Wire Specs+2

Technical Specifications

Parameters and characteristics for this part

SpecificationG1238M24B-FSR-CC
Air Flow125 CFM
Air Flow3.5 m³/min
Approval AgencyCE, cUL, TUV, UL
Bearing TypeBall
Current Rating (Amps)0.33 A
Fan TypeTubeaxial
FeaturesThermal Overload Protector (TOP), Conformal Coating
Material - BladePolybutylene Terephthalate (PBT)
Noise43 dB
RPM2800 RPM
Size / Dimension [x]119 mm
Size / Dimension [y]119 mm
Static Pressure0.32 in H2O
Static Pressure79.7 Pa
Termination2 Wire Leads
Voltage - Rated24 VDC
Weight335.66 g
Weight0.74 lb
Width [y]38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 50$ 16.79

Description

General part information

G1238M24B-FSR-CC

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 125.0 CFM (3.50m³/min) 2 Wire Leads
