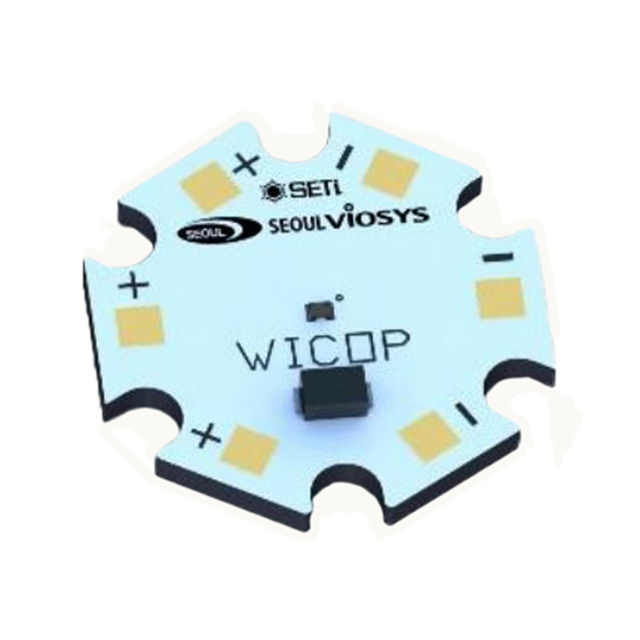

CUD7MN1A
ObsoleteSETi/Seoul Viosys
275 NM WICOP ON STARBOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CUD7MN1A
ObsoleteSETi/Seoul Viosys
275 NM WICOP ON STARBOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CUD7MN1A |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 200 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | Star Array |
| Type | Ultraviolet (UV) |
| Viewing Angle | 135 ° |
| Voltage - Forward (Vf) (Typ) | 6 V |
| Wavelength | 275 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CUD7MN1A
Ultraviolet (UV) Emitter 275nm 6V 200mA 135° Star Array
Documents
Technical documentation and resources
