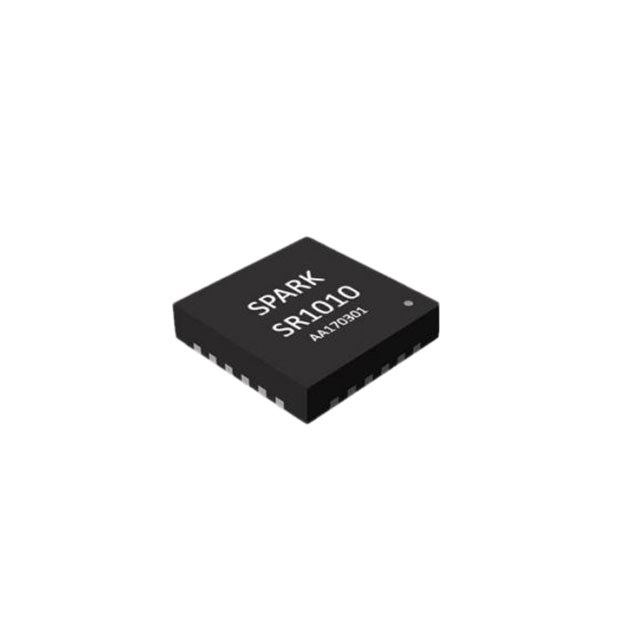

SR1010AB-4Q28-TR
ActiveSPARK Microsystems International Inc.
IC RF TXRX 28QFN
Deep-Dive with AI
Search across all available documentation for this part.
SR1010AB-4Q28-TR
ActiveSPARK Microsystems International Inc.
IC RF TXRX 28QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SR1010AB-4Q28-TR |
|---|---|
| Current - Receiving | 8 mA |
| Current - Transmitting | 2.4 mA |
| Data Rate (Max) [Max] | 20.48 Mbps |
| Frequency [Max] | 5.8 GHz |
| Frequency [Min] | 3.1 GHz |
| Modulation | OOK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-VFQFN Exposed Pad |
| Power - Output | 10 dBm |
| Protocol | Ultra Wideband (UWB) Impulse Radio |
| Sensitivity | -75 dBm |
| Serial Interfaces | SPI |
| Supplier Device Package | 28-QFN (4x4) |
| Type | TxRx Only |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.51 | |
| 10 | $ 6.89 | |||
| 25 | $ 6.26 | |||
| 100 | $ 5.64 | |||
| 250 | $ 5.17 | |||
| 500 | $ 4.70 | |||
| 1000 | $ 4.23 | |||
| Digi-Reel® | 1 | $ 7.51 | ||
| 10 | $ 6.89 | |||
| 25 | $ 6.26 | |||
| 100 | $ 5.64 | |||
| 250 | $ 5.17 | |||
| 500 | $ 4.70 | |||
| 1000 | $ 4.23 | |||
| Tape & Reel (TR) | 5000 | $ 3.91 | ||
Description
General part information
SR1010AB-4Q28-TR
IC RF TxRx Only Ultra Wideband (UWB) Impulse Radio 3.1GHz ~ 5.8GHz 28-VFQFN Exposed Pad
