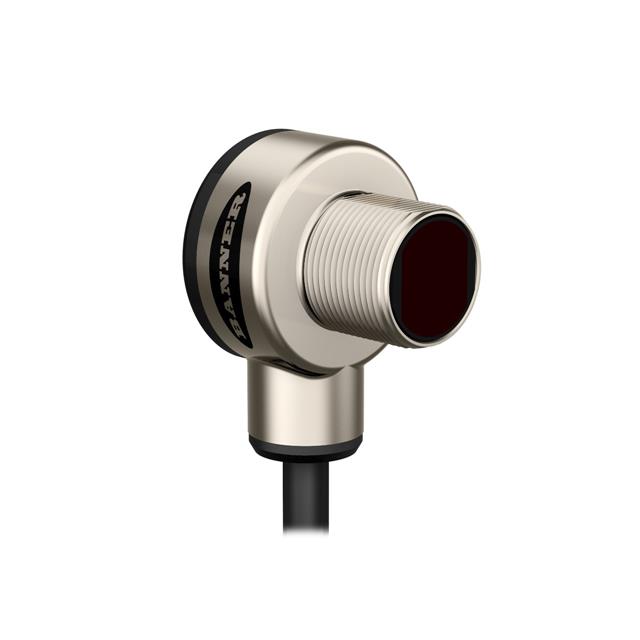

TM18VP6LP

Active

BANNER ENGINEERING

EZ BEAM TM18: POLARIZED RETROREFLECTIVE

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ BEAM TM18: POLARIZED RETROREFLECTIVE

Technical Specifications

Parameters and characteristics for this part

Specification	TM18VP6LP

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Red (624nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	3 ms
Sensing Distance	5.5 m
Sensing Distance	18.04 ft
Sensing Method	Polarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 124.00
Newark	Each	1	$ 124.00

General part information

Retroreflective, Polarized Optical Sensor 18.04' (5.5m) PNP - Dark-ON/Light-ON - Selectable

Technical documentation and resources
