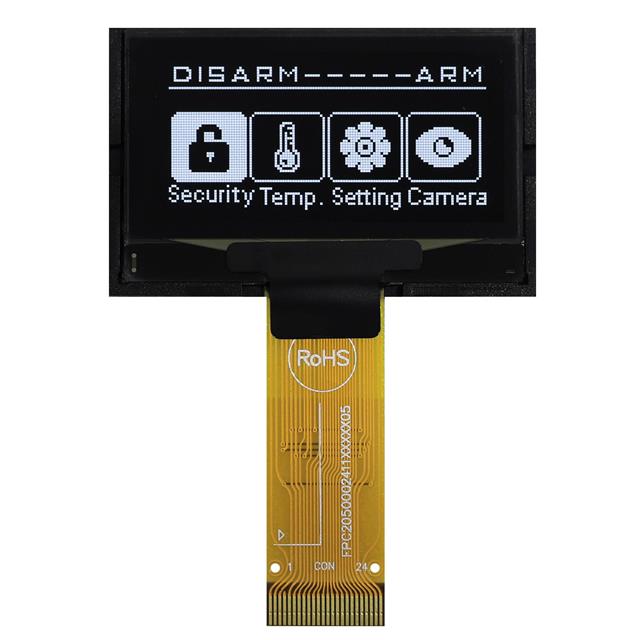

WEO012864YWAP3N00000
ActiveWinstar Display
1.54" COG 128X64
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WEO012864YWAP3N00000
ActiveWinstar Display
1.54" COG 128X64
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WEO012864YWAP3N00000 |
|---|---|
| Backlight | Without Backlight |
| Controller Type | SSD1309 |
| Diagonal Screen Size [x] | 1.54 in |
| Diagonal Screen Size [x] | 39.12 mm |
| Display Mode | Passive |
| Display Type | OLED - Passive Matrix |
| Dot Pitch [x] | 0.27 mm |
| Dot Pitch [y] | 0.27 mm |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 64 |
| Dot Size [x] | 0.25 mm |
| Dot Size [y] | 0.25 mm |
| Graphics Color | White |
| Interface | I2C, SPI |
| Touchscreen | Non-Touch |
| Viewing Area [x] | 37.05 mm |
| Viewing Area [y] | 19.51 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.79 | |
Description
General part information
WEO012864YWAP3N00000
Non-Touch Graphic LCD Display Module Passive White OLED - Passive Matrix I2C, SPI 1.54" (39.12mm) 128 x 64
Documents
Technical documentation and resources
