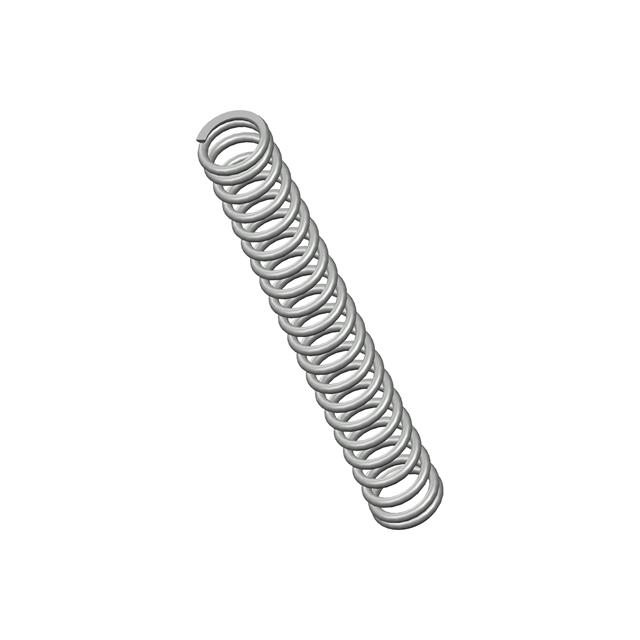

11522CS
ActiveCentury Spring Corp
COMP O= .468,L= 3.50,W= .0625
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11522CS
ActiveCentury Spring Corp
COMP O= .468,L= 3.50,W= .0625
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 11522CS |
|---|---|
| Diameter - Inside [diameter] | 8.74 mm |
| Diameter - Inside [diameter] | 0.344 in |
| Diameter - Outside [diameter] | 0.468 in |
| Diameter - Outside [diameter] | 11.89 mm |
| End Style | Ground, Closed |
| Finish | Gold Iridite |
| Free Length | 88.9 mm |
| Free Length | 3.5 in |
| Material | Spring Steel |
| Rate | 17 lbs/in |
| Wire Diameter | 0.062 " |
| Wire Diameter | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
11522CS
COMP O= .468,L= 3.50,W= .0625
