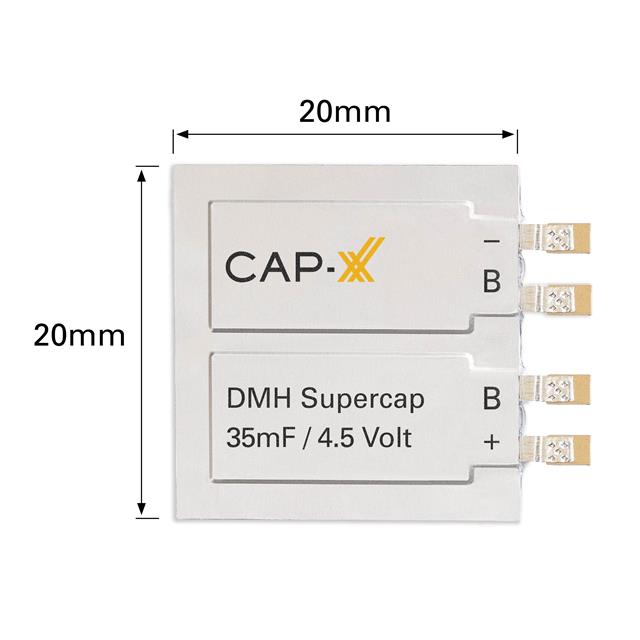

DMHA14R5V353M4ATA0
ActiveCAP-XX Ltd Supercapacitors
CAP 35MF 2.25V -40-+85C
Deep-Dive with AI
Search across all available documentation for this part.
DMHA14R5V353M4ATA0
ActiveCAP-XX Ltd Supercapacitors
CAP 35MF 2.25V -40-+85C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMHA14R5V353M4ATA0 |
|---|---|
| Capacitance | 35 mF |
| ESR (Equivalent Series Resistance) | 300 mOhm |
| Height - Seated (Max) [Max] | 0.016 in |
| Height - Seated (Max) [Max] | 0.4 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [y] | 0.787 in |
| Size / Dimension [y] | 20 mm |
| Tolerance | 20 % |
| Voltage - Rated | 4.5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2 | $ 15.00 | |
Description
General part information
DMHA14R5V353M4ATA0
35 mF (EDLC) Supercapacitor 4.5 V 4-SMD 300mOhm @ 1kHz
Documents
Technical documentation and resources
No documents available
