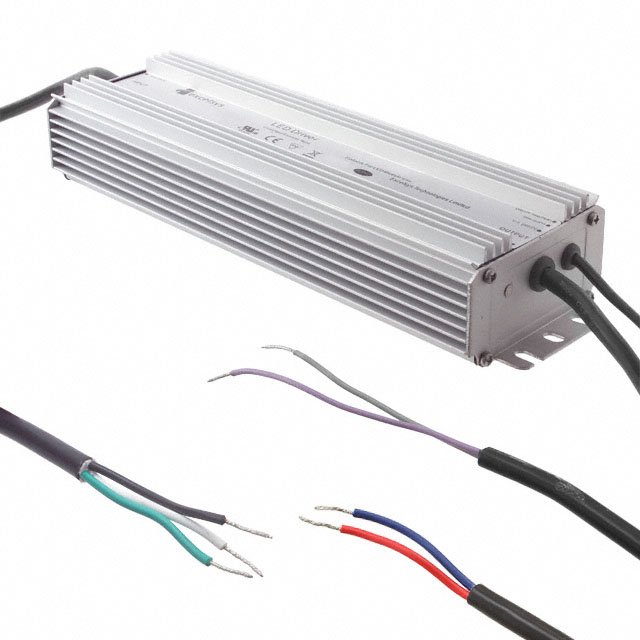

LXD150-0350SW
ObsoleteEXCELSYS / Advanced Energy
LED DRIVER CC AC/DC 214-428V
Deep-Dive with AI
Search across all available documentation for this part.
LXD150-0350SW
ObsoleteEXCELSYS / Advanced Energy
LED DRIVER CC AC/DC 214-428V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LXD150-0350SW |
|---|---|
| Approval Agency | CE, cULus, EN |
| Current - Output (Max) [Max] | 350 mA |
| Dimming | Analog |
| Efficiency | 93.5 % |
| Features | SCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -35 °C |
| Power (Watts) | 150 W |
| Ratings | IP67 |
| Size / Dimension [x] | 10.43 in |
| Size / Dimension [x] | 265 mm |
| Size / Dimension [y] | 3.13 " |
| Size / Dimension [y] | 79.5 mm |
| Size / Dimension [z] | 46 mm |
| Size / Dimension [z] | 1.81 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 428 V |
| Voltage - Output [Min] | 214 V |
| Weight | 3.2 lbs |
| Weight | 1.5 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LXD150-0350SW
350mA 214 ~ 428V Constant Current LED Driver AC DC Converter Topology 1 Output
