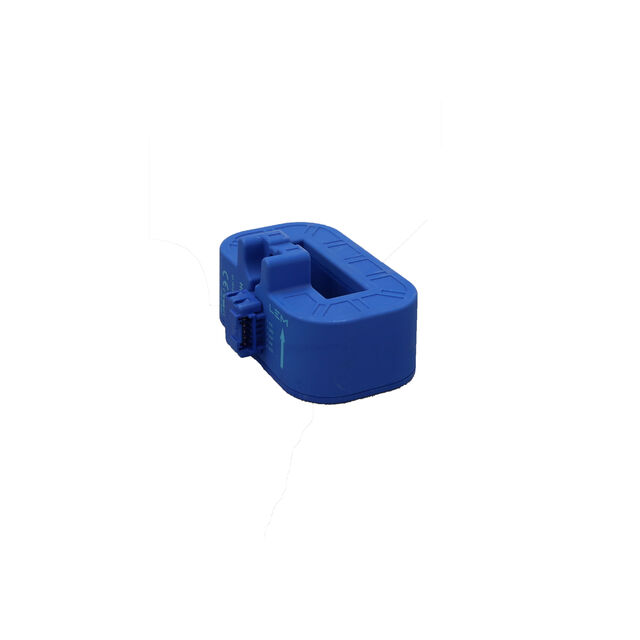

HOYL 600-S-0100
ActiveLEM USA Inc.
600A 5V OL BUS BAR MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
HOYL 600-S-0100
ActiveLEM USA Inc.
600A 5V OL BUS BAR MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HOYL 600-S-0100 |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 600 A |
| Current - Supply (Max) [Max] | 25 mA |
| For Measuring | AC/DC |
| Frequency [Max] | 140 kHz |
| Frequency [Min] | DC |
| Linearity | 0.5 % |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 1.333 mV/A |
| Sensor Type | Hall Effect, Open Loop |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 82.99 | |
| 5 | $ 76.93 | |||
| 10 | $ 74.67 | |||
| 32 | $ 71.29 | |||
| 64 | $ 69.50 | |||
| 128 | $ 67.85 | |||
Description
General part information
HOYL 600-S-0100
Current Sensor 600A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass Through
Documents
Technical documentation and resources
No documents available
