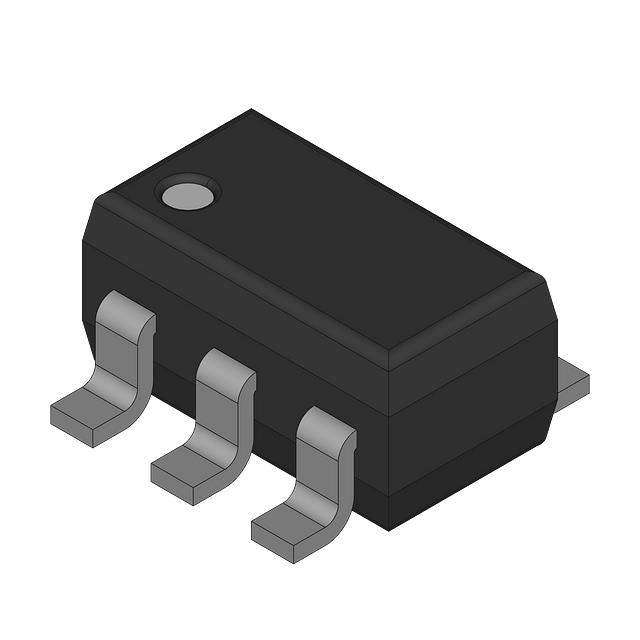

LM3411M5X-5.0/NOPB
ActiveNational Semiconductor
IC VREF SHUNT 1% SOT23-5
Deep-Dive with AI
Search across all available documentation for this part.
LM3411M5X-5.0/NOPB
ActiveNational Semiconductor
IC VREF SHUNT 1% SOT23-5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LM3411M5X-5.0/NOPB |
|---|---|
| Current - Cathode | 150 µA |
| Current - Output | 15 mA |
| Mounting Type | Surface Mount |
| Noise - 10Hz to 10kHz | 80 µVrms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1.81 mOhm |
| Package / Case | SC-74A, SOT-753 |
| Reference Type | Shunt |
| Supplier Device Package | SOT-23-5 |
| Tolerance | 1 % |
| Voltage - Output (Min/Fixed) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 392 | $ 0.77 | |
Description
General part information
LM3411M5X-5.0/NOPB
Shunt Voltage Reference IC Fixed 5V V ±1% 15 mA SOT-23-5
Documents
Technical documentation and resources
No documents available
