MMF405887
ActiveMicro-Measurements (Division of Vishay Precision Group)

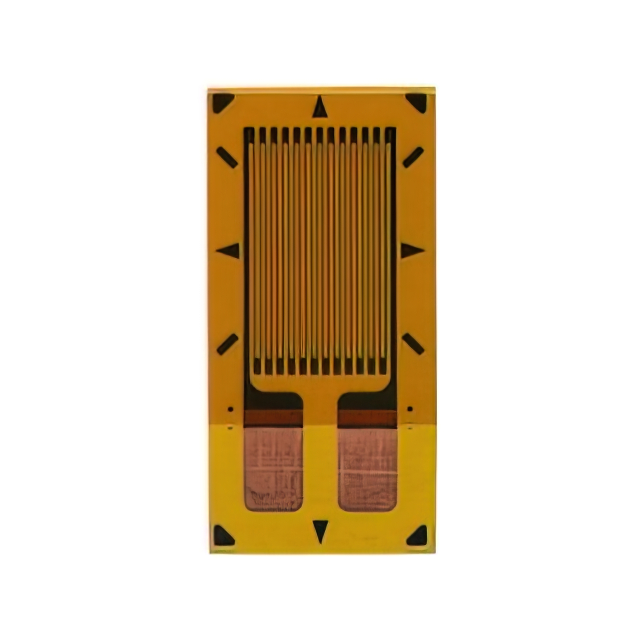

CEA-09-250UWA-350/P2 - STRAIN GA
Deep-Dive with AI
Search across all available documentation for this part.
MMF405887
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-09-250UWA-350/P2 - STRAIN GA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF405887 |
|---|---|
| Length - Active [x] | 0.25 in |
| Length - Active [x] | 6.35 mm |
| Length - Overall [x] | 0.55 " |
| Length - Overall [x] | 14 mm |
| Length - Overall Pattern | 11.43 mm |
| Length - Overall Pattern | 0.45 in |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -103 °F |
| Operating Temperature [Min] | -75 °C |
| Pattern Type | Linear |
| Resistance | 350 Ohms |
| Resistance Tolerance | 0.3 % |
| Width - Active | 4.57 mm |
| Width - Active [y] | 0.18 in |
| Width - Overall [y] | 0.27 in |
| Width - Overall [y] | 6.9 mm |
| Width - Overall Pattern [x] | 0.18 in |
| Width - Overall Pattern [x] | 4.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 182.65 | |
Description
General part information
MMF405887
Linear Strain Gauge ±5% 0.250" (6.35mm) 0.180" (4.57mm)
Documents
Technical documentation and resources
No documents available
