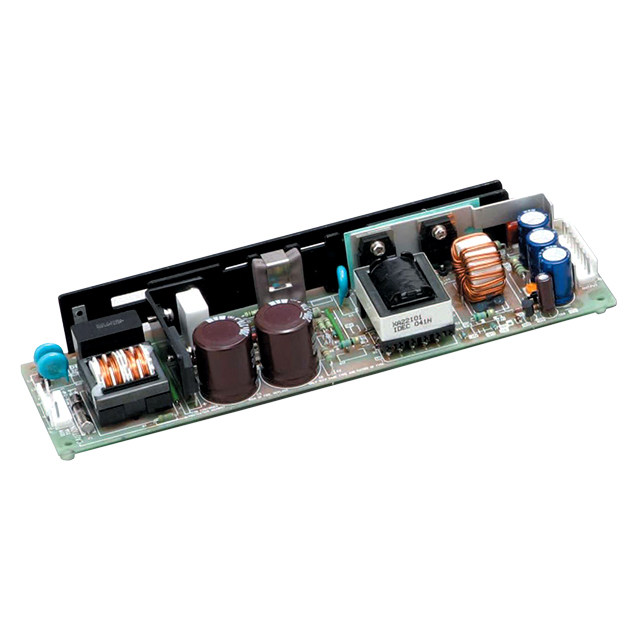

VS10C-3
TDK-LAMBDA
AC/DC CONVERTER 3.3V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VS10C-3
TDK-LAMBDA
AC/DC CONVERTER 3.3V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS10C-3 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 2 A |
| Efficiency | 62 % |
| Features | DC Input Capable, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 10 W |
| Type | Open Frame |
| Voltage - Input [Max] | 132 VAC, 175 VDC |
| Voltage - Input [Min] | 85 VAC, 110 VDC |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.61 | |
Description
General part information
VS10C-3
Open Frame AC DC Converters 1 Output 3.3V 85 ~ 132 VAC, 110 ~ 175 VDC Input
Documents
Technical documentation and resources
