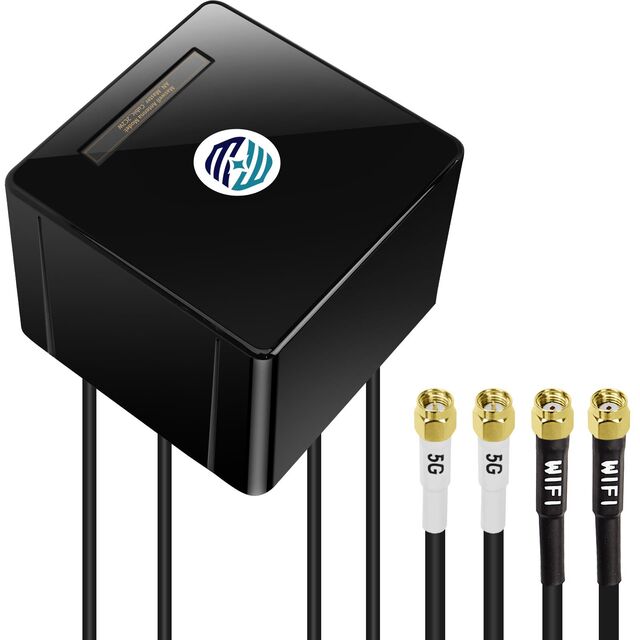

AN_MASTER_CUBIC_2C2W
ActiveSuzhou Maswell Communication Technology Co. Ltd
4 IN 1 COMBO 2X2 MIMO 5G & WIFI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN_MASTER_CUBIC_2C2W |
|---|---|
| Antenna Type | Module |
| Applications | Wi-Fi, 5G |
| Features | Cable - 2m |
| Frequency (Center/Band) | 4.3 GHz, 4.65 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 8 GHz, 7.2 GHz |
| Frequency Range [Min] | 2.1 GHz, 600 MHz |
| Gain | 4 dBi, 6 dB |
| Height (Max) [Max] | 3.587 in |
| Height (Max) [Max] | 91.1 mm |
| Ingress Protection | IP67 |
| Number of Bands | 2 |
| RF Family/Standard | Cellular, WiFi |
| Termination | SMA Male (1), RP-SMA Male (1) |
| VSWR | 1.5, 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 177.58 | |
| 10 | $ 166.48 | |||
| 25 | $ 158.16 | |||
Description
General part information
AN_MASTER_CUBIC_2C2W
RF ANTENNA 5G, Wi-Fi Module SMA Male (1), RP-SMA Male (1) Panel Mount
