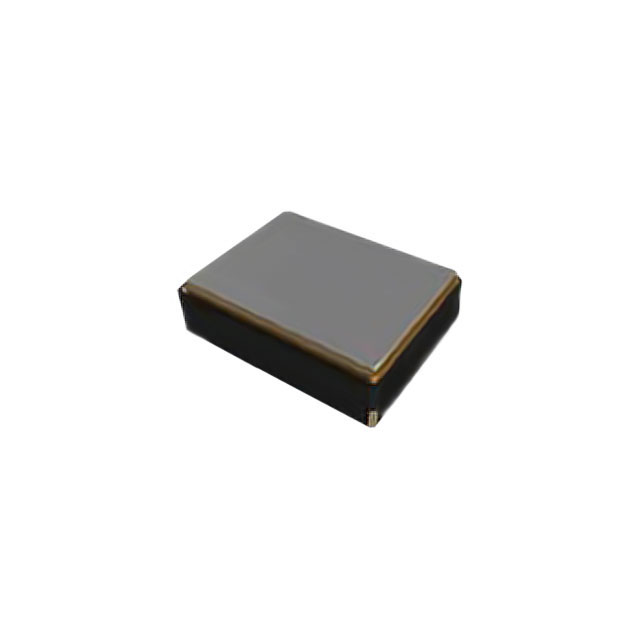

I538-2O7-25.000 MHZ
ActiveILSI
XTAL OSC TCXO 25MHZ HCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
I538-2O7-25.000 MHZ
ActiveILSI
XTAL OSC TCXO 25MHZ HCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | I538-2O7-25.000 MHZ |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 6 mA |
| Frequency | 25 MHz |
| Frequency Stability | 1.5 ppm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.54 | |
| 10 | $ 3.05 | |||
| 50 | $ 2.75 | |||
| 100 | $ 2.63 | |||
| 500 | $ 2.38 | |||
| 1000 | $ 2.28 | |||
| Digi-Reel® | 1 | $ 3.54 | ||
| 10 | $ 3.05 | |||
| 50 | $ 2.75 | |||
| 100 | $ 2.63 | |||
| 500 | $ 2.38 | |||
| 1000 | $ 2.28 | |||
Description
General part information
I538-2O7-25.000 MHZ
25 MHz TCXO CMOS Oscillator 3V 4-SMD, No Lead
