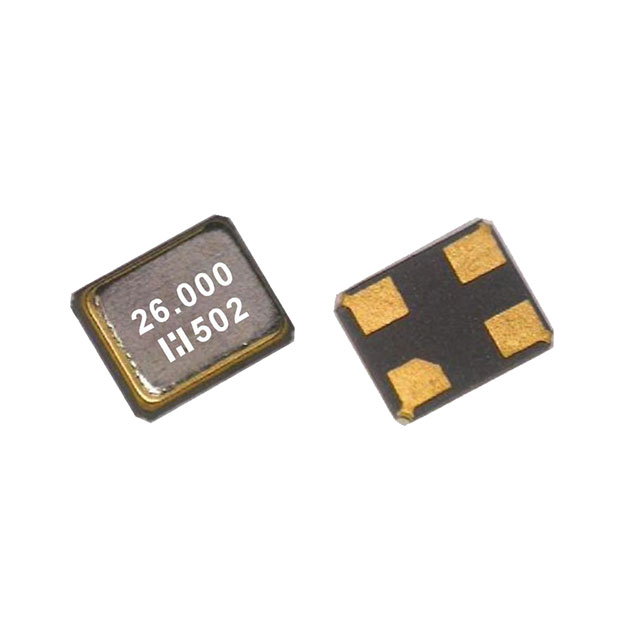

E1SB25E000009E - E1SB48E000506E

E1SB25E000009E

Active
Hosonic Electronic Co., Ltd

XTAL 2016 25MHZ, 6PF/30/30/-30+8

Deep-Dive with AI

Search across all available documentation for this part.

E1SB25E000009E - E1SB48E000506E

E1SB25E000009E

Active
Hosonic Electronic Co., Ltd

XTAL 2016 25MHZ, 6PF/30/30/-30+8

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationE1SB25E000009E
ESR (Equivalent Series Resistance)80 Ohm
Frequency25 MHz
Frequency Stability30 ppm
Frequency Tolerance30 ppm
Height - Seated (Max) [Max] [z]0.5 mm
Height - Seated (Max) [Max] [z]0.02 "
Load Capacitance6 pF
Mounting TypeSurface Mount
Operating ModeFundamental
Operating Temperature [Max]85 °C
Operating Temperature [Min]-30 ░C
Package / Case4-SMD, No Lead
Size / Dimension [x]2 mm
Size / Dimension [x]0.079 in
Size / Dimension [y]0.063 in
Size / Dimension [y]1.6 mm
TypeMHz Crystal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.61
10$ 0.51
50$ 0.45
100$ 0.40
500$ 0.38
1000$ 0.32
Digi-Reel® 1$ 0.61
10$ 0.51
50$ 0.45
100$ 0.40
500$ 0.38
1000$ 0.32
Tape & Reel (TR) 3000$ 0.30
6000$ 0.29
15000$ 0.28

Description

General part information

E1SB25E000009E

25 MHz ±30ppm Crystal 6pF 80 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

No documents available
