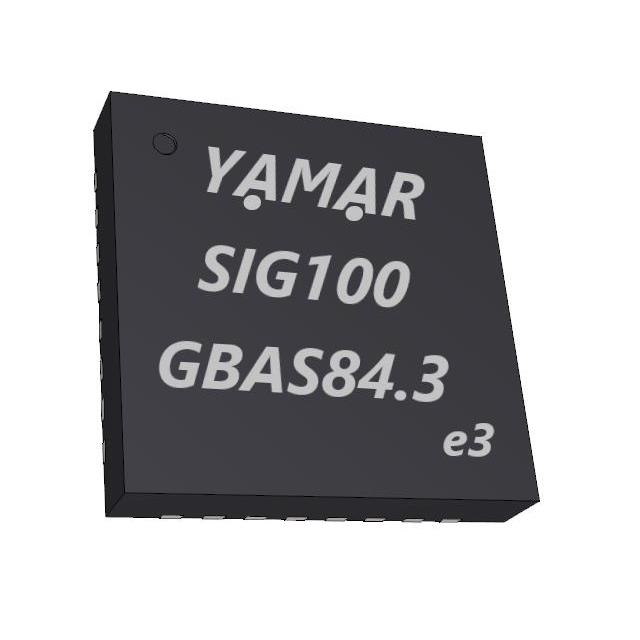

SIG100-IC
ActiveYamar
UART/LIN DC PLC TRANSCEIVER IC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SIG100-IC
ActiveYamar
UART/LIN DC PLC TRANSCEIVER IC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SIG100-IC |
|---|---|
| Baud Rates [Max] | 115.2 k |
| Baud Rates [Min] | 9.6 k |
| Data Format | PSK |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.07 | |
| 10 | $ 7.05 | |||
| 25 | $ 6.55 | |||
| 100 | $ 5.99 | |||
| 250 | $ 5.73 | |||
| 500 | $ 5.57 | |||
| 1000 | $ 5.44 | |||
| Digi-Reel® | 1 | $ 9.07 | ||
| 10 | $ 7.05 | |||
| 25 | $ 6.55 | |||
| 100 | $ 5.99 | |||
| 250 | $ 5.73 | |||
| 500 | $ 5.57 | |||
| 1000 | $ 5.44 | |||
| Tape & Reel (TR) | 5000 | $ 5.22 | ||
Description
General part information
SIG100-IC
9.6k ~ 115.2k Modem PSK 32-QFN (5x5)
Documents
Technical documentation and resources
