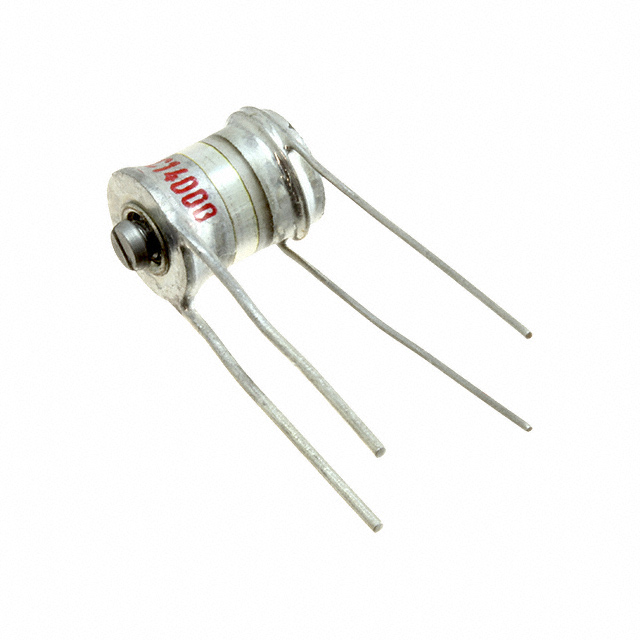

GEC14000
ObsoleteSprague-Goodman
CAP TRIMMER 1-14PF 750V TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GEC14000
ObsoleteSprague-Goodman
CAP TRIMMER 1-14PF 750V TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GEC14000 |
|---|---|
| Adjustment Type | Side |
| Capacitance Range [Max] | 14 pF |
| Capacitance Range [Min] | 1 pF |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 9.93 mm |
| Height - Seated (Max) [Max] [z] | 0.391 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Q @ Freq | 20 MHz, 500 |
| Size / Dimension [diameter] | 0.312 in |
| Size / Dimension [diameter] | 7.92 mm |
| Voltage - Rated | 750 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.66 | |
Description
General part information
GEC14000
1 ~ 14pF Trimmer Capacitor 750 V Side Through Hole
Documents
Technical documentation and resources
