WEH001602ABPP5N00100
ActiveWinstar Display
16X2 COB OLED CHARACTER DISPLAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WEH001602ABPP5N00100
ActiveWinstar Display
16X2 COB OLED CHARACTER DISPLAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WEH001602ABPP5N00100 |
|---|---|
| Background Color | Blue |
| Backlight | Without Backlight |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Controller Type | WS0010-TX |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Passive |
| Display Type | OLED |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.65 mm |
| Number of Characters | 32 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 10 mm |
| Viewing Area [x] | 66 mm |
| Viewing Area [y] | 16 mm |
| Voltage - Supply [Max] | 5.3 V |
| Voltage - Supply [Min] | 4.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.31 | |
Description
General part information
WEH001602ABPP5N00100

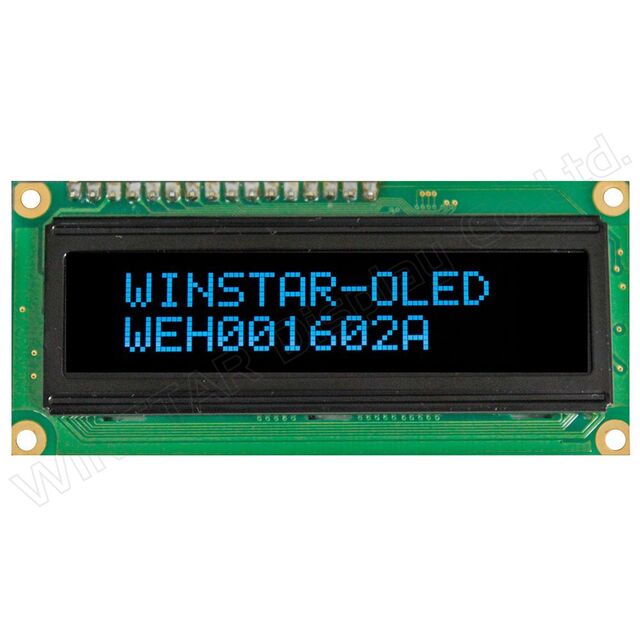

Character Display Module Passive 5 x 8 Dots OLED Without Backlight 80.00mm x 36.00mm x 10.00mm
