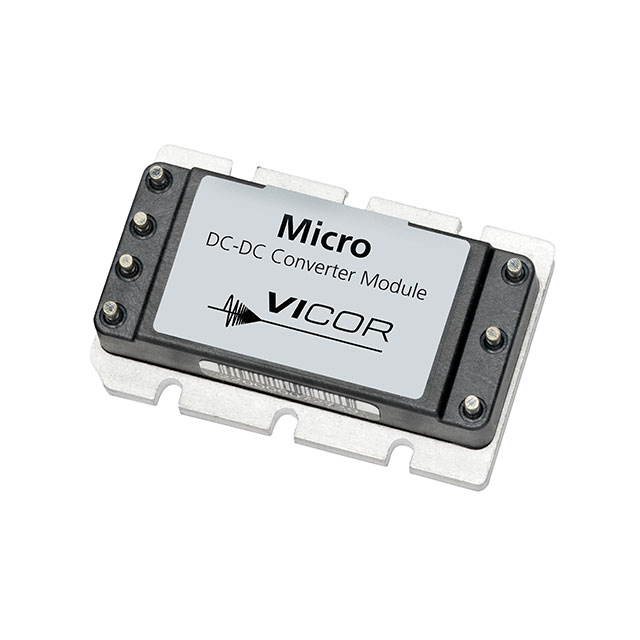

V48C24C150BL2
ActiveVicor Corporation
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 150W, HYBRID, PACKAGE-7
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V48C24C150BL2
ActiveVicor Corporation
DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 150W, HYBRID, PACKAGE-7
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V48C24C150BL2 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 6.25 A |
| Efficiency | 88.5 % |
| Features | OVP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Quarter Brick |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 0.62 in |
| Size / Dimension [z] | 15.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 273.84 | |
| 10 | $ 217.52 | |||
| 25 | $ 198.47 | |||
| 50 | $ 194.38 | |||
Description
General part information
V48C24C150BL2
Isolated Module DC DC Converter 1 Output 24V 6.25A 36V - 75V Input
