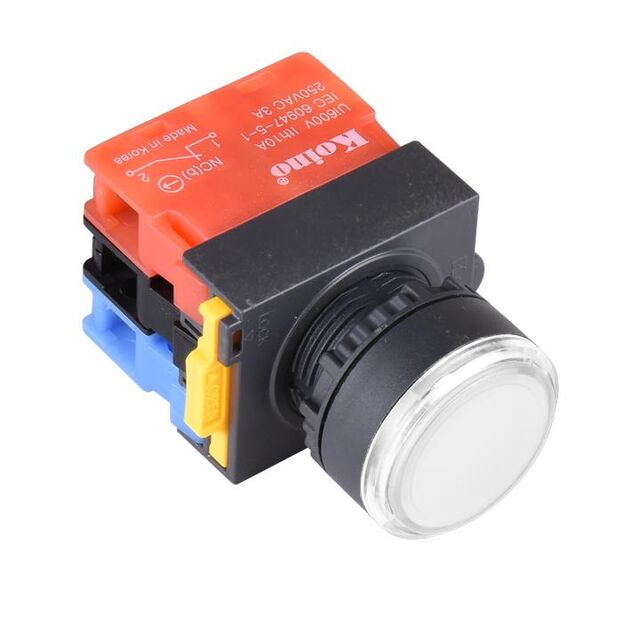

NS22-BM-L1CW1A1B
ActiveKOINO
22MM PUSH BUTTON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NS22-BM-L1CW1A1B
ActiveKOINO
22MM PUSH BUTTON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NS22-BM-L1CW1A1B |
|---|---|
| Actuator Type | Flush, Button, Round |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 270 mA, 3 A |
| Electrical Life | 500000 Cycles |
| Illumination Type, Color | White, LED |
| Illumination Voltage (Nominal) | 6 V |
| Ingress Protection | IP66 |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Screw Terminal |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 32.00 | |
| 20 | $ 21.76 | |||
| 50 | $ 17.93 | |||
| 100 | $ 16.39 | |||
| 180 | $ 15.89 | |||
Description
General part information
NS22-BM-L1CW1A1B
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
