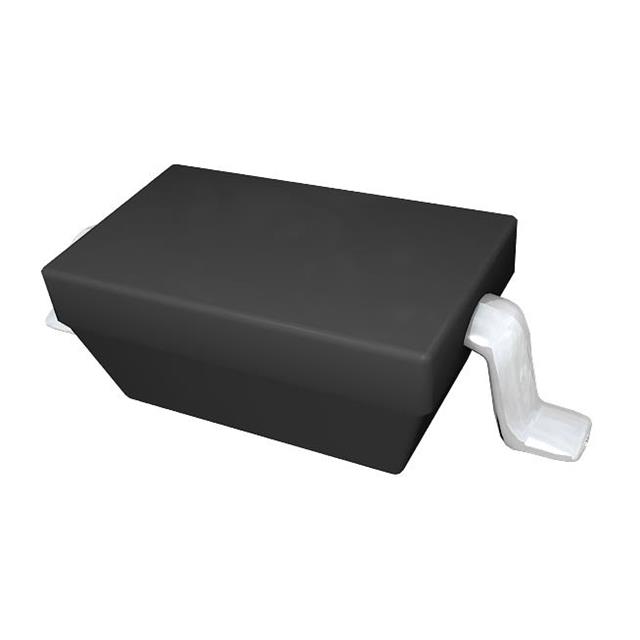

AZ4036-01G
ActiveAmazing
TVS DEVICE HIGH VOLTAGE 1-CH 36V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZ4036-01G
ActiveAmazing
TVS DEVICE HIGH VOLTAGE 1-CH 36V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ4036-01G |
|---|---|
| Applications | General |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-123 |
| Power Line Protection | True |
| Supplier Device Package | SOD-123 |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 40 V |
| Voltage - Reverse Standoff (Typ) | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 10 | $ 0.35 | |
Description
General part information
AZ4036-01G
Clamp Ipp Tvs Diode Surface Mount SOD-123
