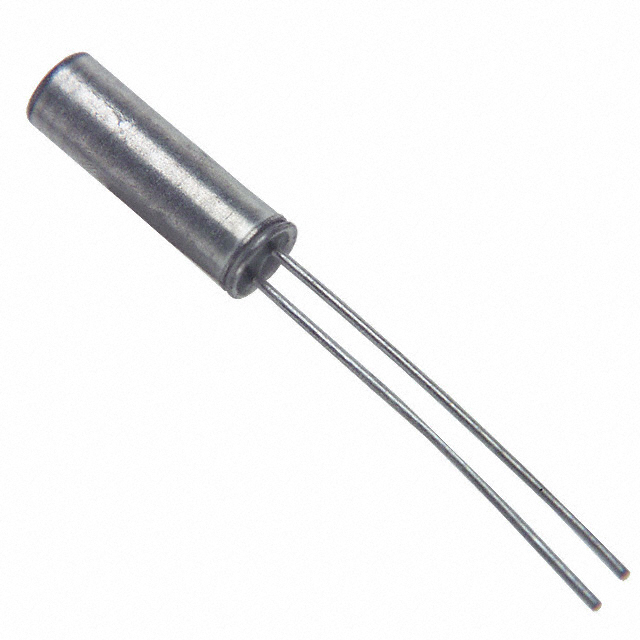

CFV-20636000AZFB

Obsolete

Citizen Finedevice Co Ltd

CRYSTAL 36.0000KHZ 12.5PF TH

Search across all available documentation for this part.

Obsolete

Citizen Finedevice Co Ltd

CRYSTAL 36.0000KHZ 12.5PF TH

Technical Specifications

Parameters and characteristics for this part

Specification	CFV-20636000AZFB

ESR (Equivalent Series Resistance)	50 kOhms
Frequency	36 kHz
Frequency Tolerance	30 ppm
Height - Seated (Max) [Max] [z]	6.2 mm
Height - Seated (Max) [Max] [z]	0.244 in
Load Capacitance	12.5 pF
Mounting Type	Through Hole
Operating Mode	Fundamental
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Package / Case	Cylindrical Can, Radial
Size / Dimension [diameter]	0.075 in
Size / Dimension [diameter]	1.9 mm
Type	kHz Crystal (Tuning Fork)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

36 kHz ±30ppm Crystal 12.5pF 50 kOhms Cylindrical Can, Radial
