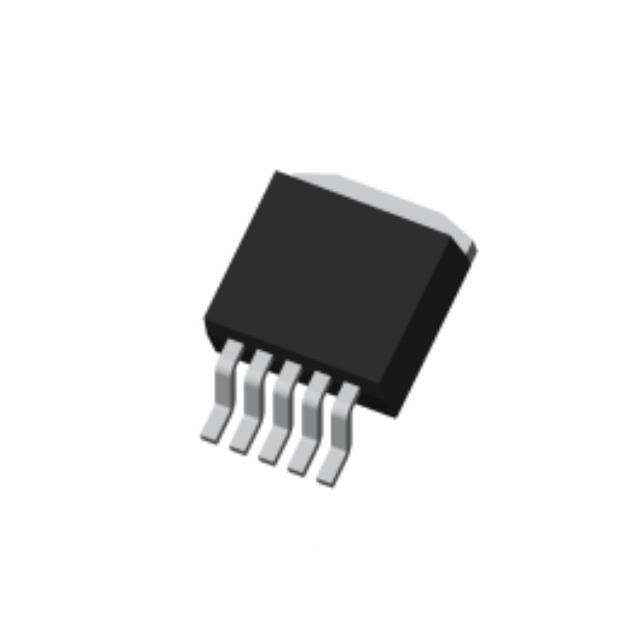

LM1501BGR-ADJ
ActiveTAEJIN
IC REG BUCK ADJ 5A TO263-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM1501BGR-ADJ
ActiveTAEJIN
IC REG BUCK ADJ 5A TO263-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM1501BGR-ADJ |
|---|---|
| Current - Output | 5 A |
| Frequency - Switching | 300 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-263-6, TO-263BA, D2PAK (5 Leads + Tab) |
| Supplier Device Package | TO-263-5L |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Output (Max) [Max] | 40 V |
| Voltage - Output (Min/Fixed) | 1.23 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 800 | $ 1.60 | |
Description
General part information
LM1501BGR-ADJ
Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output 5A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
